8-inch

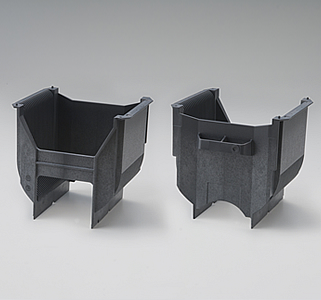

Made from e-mateX®FB-0430 material family, Paragon Carrier "FB20A107" is an up-graded item of conventional PP and PBT carriers.
In case you are concerned for issues of deformation and particles on PP and PBT carriers, this is the one for you.
The carrier dramatically outperforms others in terms of dimensional stability and abrasion resistance.
Especially, we recommend you as a reasonable item having comparable performance with existing PEEK carriers.
Slot | 25 slots |
---|---|
External Dimensions | Overall length (A1): 203.7mm x width of flange (A2): 234.44mm x height (A3): 219.08mm |
D1 Dimension | 25.4mm |
Groove pitch | 6.35mm |
Handle | Holed handle for fitting an ID marker, or no handle |
Material | Standard material (FB-0431)/heat resistant material (FB-0432) The products to be made of FB-0437(new grade), after Apr.2022. |
